Chassis Code Explained
| Segment | Meaning | Detail |
|---|---|---|
| Y | Platform series | Y — Y-series Patrol/Safari platform |
| 60 | Generation | 60 — fifth-generation Patrol/Safari (1987–1997) |
The Y60 Patrol was sold as the Safari in JDM form; engine options included the TB42 petrol inline-six and TD42 diesel inline-six.
Editorial notes
Key Takeaways
The Patrol has been around since 1951, but the three generations that matter to most buyers are the Y60, the Y61, and the Y62. The Y60 brought coil springs and the legendary TD42 diesel. The Y61 ran from 1997 well past 2013 in some markets and is the last solid axle full size Patrol. The Y62 is a different animal, a luxury V8 wagon that you'll know as the Armada or QX80 in the US.
- Y61 is the enthusiast sweet spot: simple, tough, mod-friendly
- Y62 is luxury-first with big V8 power but high running costs
- Rust and prior off-road use drive condition more than mileage
- TD42/TD42T and TB48 are most sought-after powertrains
- Imports: verify compliance, VIN, and spec (LHD/RHD, trims)
- Prices: clean, unmolested examples command steep premiums
Technical Specifications
Patrol powertrains are all over the map depending on year and country. The Y60 and Y61 ran inline six diesels like the TD42 and the ZD30, plus petrol sixes like the TB45 and TB48. The Y62 runs one engine everywhere, the VK56VD 5.6 liter V8 making around 400 hp. Gearboxes range from a 5 speed manual on early diesel Y61s to the 7 speed automatic on every Y62.
Engine Options
| Chassis | Engine | Displacement | Power — JDM | Notes |
|---|---|---|---|---|
| Y60 | TD42 | 4.2L | estimated | NA diesel; multiple calibrations by market |
| Y60 | TB42S/TB42E | 4.2L | estimated | Carb/EFI variants; ratings market-dependent |
| Y60 | TB45E | 4.5L | estimated | EFI I6; output varies by region |
| Y60 | RB30S/RB30E | 3.0L | estimated | Gas I6; carb/EFI depending on market |
| Y60 | RD28T | 2.8L | estimated | Turbo diesel; exact boost/output vary |
Transmission Options
| Type | Ratios | Availability | Notes |
|---|---|---|---|
| 4-speed Manual | estimated | 60/160 Series (market) | Early Patrol manuals vary by year/market |
| 5-speed Manual | estimated | 160/Y60/Y61 (market) | FS5R50/FS5R30 families; ratios vary |
| 4-speed Automatic | estimated | Y60/Y61 (market) | RE4R03A/RE4R01A market-dependent |
| 5-speed Automatic | estimated | Late Y61 (market) | Some markets; exact unit/ratios vary |
| 7-speed Automatic | 4.923/3.193/2.042/1.412/1.000/0.864/0.775 | Y62 all | RE7R01B; torque converter auto |
Livability
- Headroom
- 39.0"
- Tall roof; sunroof trims headroom slightly
- Rear Seats
- Usable for adults
- 3rd row (if fitted) is tight and upright
- Cargo
- 18-45 cu ft
- Big with 3rd row folded/removed; tailgate heavy
Variants & Trims
Patrol trims change names by country, which makes shopping confusing. In Australia the Y60 is called the GQ and the Y61 is the GU. In Japan both are the Nissan Safari. The Middle East gets the Super Safari and the NISMO Y62. The trims below cover what each spec actually includes, not what badge it wears in your country.
| Generation | Trim | Engine | Key Features |
|---|---|---|---|
| Y60 (1987-1997, Safari/Patrol) | DX | TD42 I6 Diesel, RB30 I6, RD28T I6 | Coil springs, part-time 4WD, basic interior |
| Y60 (1987-1997, Safari/Patrol) | ST | TD42 I6 Diesel, TB42 I6, RD28T I6 | A/C, cloth trim, power accessories (market) |
| Y60 (1987-1997, Safari/Patrol) | Ti | TD42 I6 Diesel, TB42 I6, TB45E I6 | Alloy wheels, power windows, upgraded audio |
| Y60 (1987-1997, Safari/Patrol) | Safari Gran Road (JDM) | TD42 I6 Diesel, TB42 I6, TB45E I6 | Two-tone trim, higher spec interior, alloys |
Should You Buy a Nissan Patrol Y60?
The Patrol is one of those rigs where the strong points and the weak points are clear from day one. Nissan built it to work hard, not to be quiet or fuel efficient, so what you get and what you give up have stayed the same across the run.
Why You'll Love It
- Proven body-on-frame toughness Heavy-duty chassis/axles (Y60/Y61) handle hard use, towing, and rough tracks.
- Serious off-road geometry Solid axles (Y60/Y61) deliver articulation and durability; great for lockers/tires.
- High towing capability Especially Y62 V8; stable long-wheelbase wagons tow confidently when maintained.
- Global parts & knowledge base Strong support in AU/ME/ZA; abundant guides, upgrades, and used parts networks.
- Desirable engines (market-dependent) TD42/TD42T and TB48 are highly sought for longevity and performance potential.
- Strong value retention in clean spec Unmodified, rust-free Y60/Y61 increasingly trade like collectibles in key markets.
Why You Might Not
- Rust and chassis corrosion risk Frames, sills, rear quarters, and body mounts can rot; repairs are costly and invasive.
- Fuel economy and running costs Big petrol engines (TB48/VK56) are thirsty; tires, brakes, and fluids are heavy-duty.
- Modified/off-road wear Lift kits, big tires, and hard trails accelerate driveline, steering, and axle wear.
- Engine-specific pitfalls ZD30 has reputation risk; cooling/EGT management is critical on worked diesels.
- Import/spec complexity Trim/engine vary by region; verify lockers, emissions, VIN, and compliance paperwork.
- Y62 complexity vs older Patrols More electronics/air suspension (some markets) increase diagnostic and repair costs.
Who Should NOT Buy This
- Anyone needing car-like handling or braking
- People who won't budget for cooling system work
- Rust-belt buyers without lift/inspection access
- Drivers wanting cheap fuel costs or good MPG
- Owners who can't DIY or lack a 4x4 specialist
- People needing easy parking in tight cities
- Anyone towing heavy without adding trans cooler
- Buyers expecting modern safety tech and airbags
- Short-trip drivers of DPF-equipped diesels
- People who hate wind noise and truck NVH
- Those needing reliable parts supply in the US
- Anyone who won't maintain diffs/grease U-joints
- Buyers of heavily modified rigs without receipts
- People needing a light tailgate and low load floor
- Anyone needing a quiet, vibration-free commute
- Owners who ignore rust prevention and underwashing
Common Issues & Solutions
The Patrol is a tough truck mechanically, but it lives a harder life than most cars on this site. Rust at the frame and body mounts is the big one. The ZD30 diesel has a reputation for piston failure when the cooling and EGT aren't watched. Cooling systems get tired on the older diesels. The good news is none of this is hidden once you know where to look.
| Issue | Cause | Solution | Est. Cost |
|---|---|---|---|
| Frame rust perforation | Salt exposure, trapped mud, poor undercoating | Cut/plate weld repairs; cavity wax; avoid rot | $1500-8000 |
| Body mount rot/crush | Rust at mount cups and captive nuts | Replace mounts; weld cups; align body | $800-3500 |
| Overheating under load | Clogged radiator, weak fan clutch, old hoses | New rad, fan clutch, hoses, thermostat, flush | $700-1800 |
| Head gasket failure | Chronic overheating, poor coolant maintenance | Head gasket, machine head, new bolts, cooling fix | $2500-6500 |
| Heater core leak | Corrosion from old coolant, electrolysis | Replace heater core; flush; check grounds | $900-2200 |
| Rear main seal leak | Age, crankcase pressure, worn seal surface | Seal replacement; check PCV/breather system | $900-2200 |
| Rocker cover gasket leak | Hardened gasket, over-torqued cover | Replace gaskets; clean breathers; reseal corners | $200-700 |
| Low oil pressure hot | Worn bearings, oil pump wear, sludge | Gauge verify; rebuild bottom end if confirmed | $3500-9000 |
| Turbo wear/smoke (diesel) | Poor oil changes, dusting, high EGT towing | Rebuild/replace turbo; fix intake leaks; EGT gauge | $1200-3500 |
| Injector wear (diesel) | Dirty fuel, high mileage, poor filtration | Test/replace injectors; new filter; clean tank | $1200-4500 |
| Injection pump leak/fail | Seal shrinkage, contaminated fuel, age | Reseal or rebuild pump; set timing correctly | $1200-4000 |
| Hard start when hot (diesel) | Pump wear, air leaks, weak starter/grounds | Fuel system leak test; pump service; cables | $300-2500 |
| EGR/intake clogging | Soot + oil mist buildup over time | Intake clean; EGR service; catch can where legal | $300-1200 |
| Dusting engine damage | Poor airbox seal, bad snorkel install, off-road | Fix sealing; compression test; rebuild if scored | $150-9000 |
| Auto trans slipping/flare | Overheating, old ATF, towing without cooler | Fluid service early; rebuild if slipping persists | $350-4500 |
| Auto trans overheating | Small cooler, towing, clogged radiator cooler | Add external cooler + temp gauge; flush system | $250-900 |
| Manual clutch wear | Heavy towing, big tires, off-road slipping | Clutch kit + flywheel machine; inspect rear seal | $900-2200 |
| Transfer case noise/leak | Low oil, worn bearings, seal aging | Reseal; rebuild bearings if noisy; correct oil | $300-2500 |
| 4WD hub/actuator failure | Vac leaks, seized hubs, neglected service | Replace lines/solenoids; rebuild hubs; test vacuum | $200-1200 |
| Diff lock won't engage | Actuator corrosion, wiring faults, low voltage | Clean/replace actuator; repair wiring; service diff | $300-1800 |
| Front wheel bearing failure | Water ingress, wrong preload, no grease service | Replace bearings/seals; set preload; repack | $350-1200 |
| Death wobble/shimmy | Worn bushes, bad caster after lift, loose bearings | Fix caster, replace bushes/ends; balance tires | $400-2500 |
| Steering box leak/play | Seal wear, sector shaft wear, big tires | Adjust if minor; rebuild/replace box; align | $400-1800 |
| Panhard/radius cracks | Hard off-road hits, rust, poor lift geometry | Weld/replace brackets; reinforce; correct geometry | $500-2500 |
| Brake hard line corrosion | Salt exposure, trapped mud on frame | Replace lines; flush fluid; inspect calipers | $600-2000 |
| Caliper seizure/uneven pads | Corrosion, neglected slide pins, old fluid | Rebuild/replace calipers; new pads/rotors; flush | $400-1400 |
| ABS sensor faults | Damaged wiring, rusted tone rings, mud | Repair wiring; replace sensor; clean tone ring | $150-700 |
| Charging/ground gremlins | Corroded grounds, weak alternator, bad mods | Voltage drop test; renew grounds; alternator rebuild | $150-900 |
| A/C weak or intermittent | Low refrigerant, compressor wear, blend door issues | Leak test/repair; recharge; replace compressor/actuator | $200-1800 |
| Cabin water leaks | Blocked drains, bad windshield seal, cowl rust | Clear drains; reseal glass; repair rust; dry carpets | $150-2500 |
| Exhaust manifold cracks/leaks | Heat cycling, broken studs, towing heat | Machine/replace manifold; new studs/nuts; check EGT | $400-1800 |
| DPF blockage (newer diesels) | Short trips, failed regen, bad sensors | Forced regen; replace sensors; DPF clean/replace | $300-3500 |
| Fuel contamination damage | Water/dirt in fuel, poor filtration, bad storage | Drain tank; replace filters; injector/pump service | $300-6000 |
Differences between JDM & USDM
The Patrol was never sold as a Patrol in the United States. From 1962 through 1969 the second-generation 60-Series shipped through Datsun dealers in North America, badged accordingly. After 1969 the model was withdrawn from the US market entirely. The Y60 and Y61 were never federalised — overlanders and enthusiasts who want one today rely on the 25-year FMVSS/EPA import exemption (Y60 cars from 1987 onward, Y61 cars from 1997 onward). The Y62 (2010-present) reaches the US only as a re-badged platform sibling: the Infiniti QX80 (luxury) and the Nissan Armada (mainstream). In Japan, the Y60 and Y61 were sold as the Nissan Safari, not the Patrol — same drivetrain and chassis, JDM-only trim cues (Granroad on Y60, Super Safari on Y61), and the 4.5L TB45E and 4.8L TB48DE petrol inline-sixes that the Middle East and Australian markets also received. The naming overlap means buyers searching auction inventory should query both 'Patrol' and 'Safari' to see the full JDM picture.
Pre-Purchase Inspection Checklist
Walk this list with the seller, not in front of them. The Critical items mean walking away if the paperwork isn't there. Rust at the frame and body mounts is what kills a Patrol, so spend most of your time underneath the truck. A 30 minute drive with the windows down will tell you most of what you need to know about the engine and the gearbox.
Critical Priority
High Priority
Medium Priority
Generation History
60 Series (MQ/MK) (1980-1987)
- Leaf-spring, simple mechanical 4x4
- Strong axles; popular in harsh markets
- Carb/early EFI; utilitarian interiors
- Collectible in clean, rust-free form

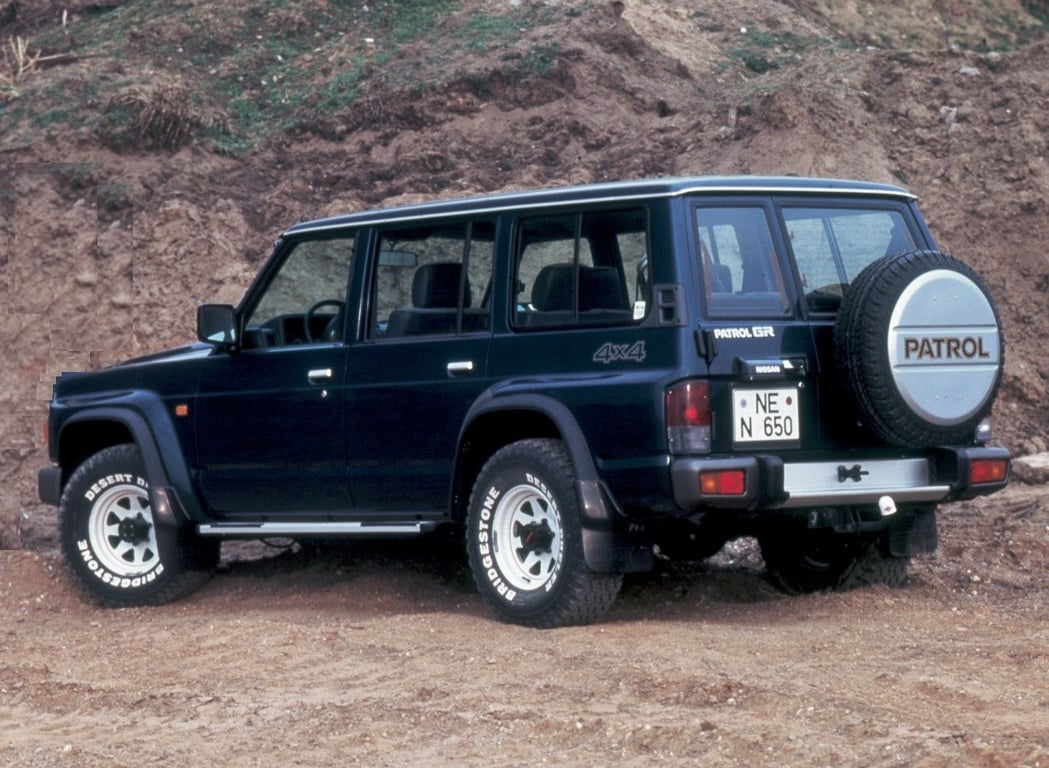

160 Series (Safari) (1987-1997)
- Coil-sprung solid axles; big upgrade
- TD42 diesel legend; long-life engines
- Factory lockers on some trims/markets
- Huge aftermarket; expedition favorite

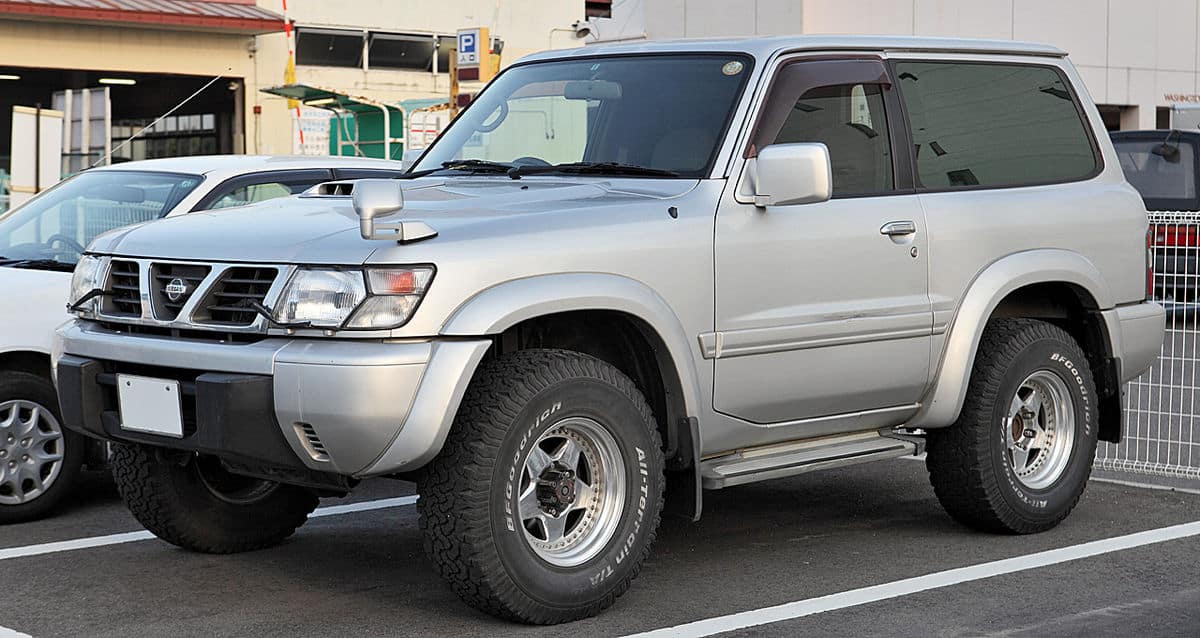

Y61 (GU Patrol) (1997-2016)
- Solid axles; coil springs; very robust
- TD42/TD42T, ZD30, TB45/TB48 options
- Wagon, pickup, and cab-chassis variants
- Rising values for clean, stock examples
Y62 (2010-present)
- Independent rear; luxury/road focus
- VK56 V8; strong towing and highway
- Tech-heavy; higher maintenance complexity
- Values tied to luxury SUV market cycles
Market Data
Patrol trims change names by country, which makes shopping confusing. In Australia the Y60 is called the GQ and the Y61 is the GU. In Japan both are the Nissan Safari. The Middle East gets the Super Safari and the NISMO Y62. The trims below cover what each spec actually includes, not what badge it wears in your country.
Production Numbers & Rarity
| Generation | Years | Total Built | Notes |
|---|---|---|---|
| 60 Series (G60/M60) | 1960-1980 | estimated | Global totals not consolidated; estimated |
| 160 Series (MQ/MK) | 1980-1987 | estimated | Production varies by plant/market; estimated |
| Y60 | 1987-1997 | estimated | Global totals not published in one figure |
| Y61 | 1997-2013+ | estimated | Long run; regional continuation complicates totals |
| Y62 | 2010-present | estimated | Ongoing; totals vary incl. Armada-related output |
How It Compares
The Patrol's main rival has always been the Toyota Land Cruiser. The Land Cruiser holds value better and rusts less in most climates. The Patrol gives you a stronger turbo diesel option in the TD42 and more power on the Y62. The table below leans toward the Patrol's strengths because that's where it actually wins, on engine choice and aftermarket support in Australia and the Middle East.
| Feature | Y60 | Toyota Land Cruiser 80 | Land Rover Defender 110 |
|---|---|---|---|
| Chassis/axles | Y61: solid axles F/R | Solid axles F/R | Solid F / coil rear |
| Off-road stock | Y61: very strong | Excellent; factory lockers common | Excellent; lighter footprint |
| Engine highlight | TD42/TB48/VK56 | 1HD-T/1HD-FT/1FZ-FE | 4M40/6G74 |
| Power (typical) | Y62 VK56: ~400 hp | 5.7 V8: ~381 hp | 5.6 V8: ~400 hp |
| Torque (typical) | Y62 VK56: ~413 lb-ft | 5.7 V8: ~401 lb-ft | 5.6 V8: ~413 lb-ft |
| Transmission | Y61: 5MT/4AT; Y62: 7AT | 4AT/5AT (varies) | 6AT/8AT (varies) |
| 4WD system | Part-time (Y61); full-time (Y62) | Full-time 4WD | Full-time 4WD |
| Lockers availability | Some trims/markets | Common on many specs | Rare factory; aftermarket common |
| Aftermarket support | Huge (AU/ME/ZA) | Huge global support | Huge global support |
| Ride/comfort | Y62: very good | Very good; more refined | Good; more utilitarian |
| Reliability reputation | High; varies by engine | Very high baseline | High; electronics vary |
| Rust resistance | Market/usage dependent | Often better preserved | Can rust badly in wet climates |
| Purchase price trend | Y60/Y61 rising; Y62 stable | 80 rising strongly | Defender surged; now selective |
Comparable Alternatives
If the Patrol doesn't end up being the right truck, the obvious alternative is the Toyota Land Cruiser. The 80 series is the closest match to a Y60 or Y61 and resale is stronger. The 100 series is more comfortable. The 200 series competes directly with the Y62. The Mitsubishi Pajero is cheaper and lighter, and the Land Rover Defender is the expedition icon with the highest upkeep.
Toyota Land Cruiser 80
Closest rival: solid axles, strong resale, global parts
Toyota Land Cruiser 100
More comfort; strong 4.7 V8; still very capable
Toyota Land Cruiser 200
Luxury/tow focus like Y62; excellent long-haul SUV
Mitsubishi Pajero Gen2
Cheaper capable classic; lighter, easier to park/own
Land Rover Defender 110
Iconic expedition platform; huge aftermarket; higher upkeep
In Pictures
The Buyer's Read
A documented Y61 with the TD42T turbo diesel is the low-risk entry point: solid axles, coil springs, parts support still strong in Australia and the Middle East, and the engine that built the Patrol's overland reputation. Skip anything without service records — deferred maintenance and rust are what make a cheap Patrol expensive to own.
If the older analog format appeals, the Y60 fits that role. The TD42 in the Y60 carries no electronics, a mechanical fuel pump, and routinely passes 500,000 km on regular oil changes. Every Y60 is at least 28 years old now, and rust at the frame rails, body mounts, and rear crossmember is the primary condition driver — a clean unmolested example costs more upfront than a rough one with a fresh respray, but the rough one costs more over time.
The Y61 ZD30DDTi carries more risk than the TD42T. High EGT, dust ingestion, and aggressive factory tuning account for most documented piston failures. An EGT gauge, EGR management, and a conservative tune shift the risk profile considerably — without them, a TD42T is the easier choice.
The Y62 is a different purchase category: a luxury V8 wagon with the 400 hp VK56VD, not an overland truck. US buyers access the same platform via the Nissan Armada and Infiniti QX80 — same drivetrain, full dealer network, no import paperwork. The Middle East NISMO spec or the Patrol badge is an import question with its own compliance variables.
Frequently Asked Questions
- Which Patrol generation is best for off-road use?
- For hardcore trails, Y60/Y61 with solid axles are favorites. Y62 is capable but more road/luxury oriented.
- What are the most desirable Patrol engines?
- TD42/TD42T (durability) and TB48 (power) are most sought. VK56 defines Y62 performance.
- Is the ZD30 diesel really that bad?
- Reputation varies by year/maintenance. Look for cooling/EGT control, service history, and conservative tuning.
- What should I check for rust on a Patrol?
- Inspect frame rails, body mounts, sills, rear quarters, and tailgate. Rust repair can exceed the truck’s value.
- Are modified Patrols worth buying?
- Only with documentation. Poor lifts/tires can stress steering, axles, and gearboxes; stock often commands more.
- Why are Y61 prices climbing in some markets?
- Supply is shrinking and demand is rising for simple, durable 4x4s. Clean, unmolested examples get collector premiums.
- What’s the Patrol’s main competitor?
- Historically it’s the Toyota Land Cruiser (80/100/200). Buyers cross-shop based on condition, rust, and engine spec.
- What’s the biggest ownership cost surprise?
- Fuel and wear items: tires, brakes, suspension, and cooling systems. Heavy trucks consume parts faster when used hard.
Sources & References
Sources (8)
- Nissan Patrol — encyclopedic overview — WikipediaVerified
- Nissan Safari — encyclopedic overview — WikipediaVerified
- Nissan Safari — Japanese encyclopedic overview — Wikipedia (Japanese)Verified
- GQ vs GU pros and cons (Y60 vs Y61 owner discussion) — patrol4x4.comVerified
- Diesel vs gas pros and cons (Patrol owner discussion) — patrol4x4.comVerified
- Nissan Patrol pros and cons (GCC market) — Zigwheels UAEVerified
- Nissan Patrol GR common problems — BreakeryardVerified
- Nissan Patrol auction history — Bring a TrailerVerified
Sources last verified:
