Chassis Code Explained
| Segment | Meaning | Detail |
|---|---|---|
| H | Model series | H — HiAce H-series platform |
| 200 | Generation | 200 — fifth-generation HiAce (2004–2018) |
H200 variants include TRH200V (2TR-FE petrol) and KDH200V/201V (1KD-FTV diesel). The H200 introduced a wider body compared to the H100 and was diesel-only in most markets.
Editorial notes
Key Takeaways
The HiAce has been in production since October 1967, longer than anything else Toyota builds. Six generations have moved roughly the same brief across nearly six decades. The H10 and H20 are mostly collector territory now, the H50 started the camper scene, the H100 is the icon, the H200 is the current JDM van, and the H300 is what Australia buys new today.
- Rust and prior repairs matter more than mileage
- 4WD diesels carry the biggest price premiums
- US 25-year rule is boosting older-gen demand
- Parts/support best for common engines like 1KZ/2KD
- Auto vs manual affects value by region and use
- Camper builds add value only if professionally done
Technical Specifications
Every JDM HiAce is rear-wheel drive or part-time 4WD, with a four-cylinder engine sitting under or beside the driver. Petrol options ran from the early 2R and 12R through the modern 2TR-FE. The diesels are what the overland scene cares about, and that means the 2L-TE, the 1KZ-TE, and the common-rail 1KD-FTV and 1GD-FTV that came later.
Engine Options
| Chassis | Engine | Displacement | Power — JDM | Notes |
|---|---|---|---|---|
| H200 | 1TR-FE | 2.0L | estimated | DOHC VVT-i I4; output varies by market |
| H200 | 2TR-FE | 2.7L | estimated | DOHC VVT-i I4; output varies by market |
| H200 | 2KD-FTV | 2.5L | estimated | D-4D turbo diesel; tune varies by emissions |
| H200 | 1KD-FTV | 3.0L | estimated | D-4D turbo diesel; market-dependent tune |
| H200/H300 | 1GD-FTV | 2.8L | estimated | GD D-4D; outputs vary widely by market/year |
Transmission Options
| Type | Ratios | Availability | Notes |
|---|---|---|---|
| 4-speed Manual | estimated | H10/H20 early commercial | Market/year dependent; multiple gearsets |
| 5-speed Manual | estimated | H50/H60/H70/H100/H200 | Multiple Toyota 5MT families used |
| 6-speed Manual | estimated | H200/H300 (market-dependent) | Typically paired with 1GD in some markets |
| 4-speed Automatic | estimated | H100/H200 (market-dependent) | Aisin 4AT variants; calibration varies |
| 5-speed Automatic | estimated | H200 (market-dependent) | Aisin 5AT variants; engine dependent |
| 6-speed Automatic | estimated | H300 (market-dependent) | Aisin 6AT variants; region-specific |
Livability
- Headroom
- 39.0"
- High roof varies; cab-over seat is upright
- Rear Seats
- Varies by trim
- Many are vans; wagons seat adults but upright
- Cargo
- Huge/boxy
- Excellent volume; wheel wells intrude; low tie-downs
Variants & Trims
JDM HiAce trims include the Super Custom, Super Custom Limited, Touring HiAce, Regius Ace, Grand HiAce, and the wide-body Granvia. Export markets mostly got the simpler DX and GL grades. The wagon-bodied Regius Ace, Grand HiAce, and Granvia share H100 mechanicals but use wider bodies aimed at the luxury MPV segment, so they drive softer and seat more.
| Generation | Trim | Engine | Key Features |
|---|---|---|---|
| H200 (5th gen) | DX | 2.0L 1TR-FE / 2.7L 2TR-FE / 2.5L 2KD-FTV | Commercial, vinyl, steel wheels, basic audio |
| H200 (5th gen) | GL | 2.0L 1TR-FE / 2.7L 2TR-FE / 2.5L 2KD-FTV | Uptrim, body-color parts, better seats |
| H200 (5th gen) | Super GL | 2.0L 1TR-FE / 2.7L 2TR-FE / 2.8L 1GD-FTV | Keyless, upgraded interior, privacy glass |
| H200 (5th gen) | Super GL Dark Prime | 2.8L 1GD-FTV | Dark trim, LED lamps, upgraded seats |
| H200 (5th gen) | Super GL Dark Prime II | 2.8L 1GD-FTV | Further dark trim, safety tech, interior upgrades |
| H200 (5th gen) | Super GL Dark Prime S | 2.8L 1GD-FTV | Special edition, appearance pack, premium trim |
| H200 (5th gen) | Commuter DX | 2.7L 2TR-FE / 3.0L 1KD-FTV / 2.8L 1GD-FTV | High roof, high capacity seating, rear A/C |
| H200 (5th gen) | Commuter GL | 2.7L 2TR-FE / 3.0L 1KD-FTV / 2.8L 1GD-FTV | Uptrim commuter, better seats, rear HVAC |
| H200 (5th gen) | Commuter Super GL (market-dependent) | 2.8L 1GD-FTV | Top commuter, privacy glass, upgraded trim |
Should You Buy a Toyota HiAce H200?
The HiAce is a working van first and a lifestyle van second. What you give up in styling and ride quality you get back in load space, parts support, and the kind of mechanical simplicity that lets a HiAce keep working at 350,000 miles. The good and bad have stayed pretty consistent across every generation.
Why You'll Love It
- Legendary durability Proven commercial platform; many exceed 300k+ mi with maintenance and cooling care.
- Strong 4WD overland appeal JDM 4WD + diesel combos are sought after for snow, trails, and camper builds.
- Excellent packaging Cab-over layout maximizes interior volume; ideal for cargo, seats, or camper conversions.
- Broad global parts ecosystem Common service parts are widely available; cross-market interchange helps long-term support.
- High resale in niche markets Clean, rust-free examples hold value well, especially H100 4WD diesels and campers.
- Simple mechanicals (older gens) Many trims are straightforward to service; fewer electronics than modern vans.
- Multiple roof/wheelbase options Low/mid/high roof and long wheelbase variants suit cargo, shuttle, or camper use.
- Driver visibility and maneuvering Short nose and upright seating make urban driving and parking easier than long-hood vans.
Why You Might Not
- Rust is the value killer Sills, arches, floors, seams, and rear quarters rot; repairs can exceed vehicle value.
- Cab-over crash safety (older) Older HiAce lacks modern crash structures; front occupants sit close to impact zone.
- Heat management on diesels 1KZ-TE can suffer head issues if overheated; cooling system condition is critical.
- Hard commercial lives Many imports were fleet vans; expect worn seats, tired suspension, and deferred maintenance.
- Parts vary by engine/trim JDM-specific 4WD and trim pieces can be slow/expensive; verify engine code before buying.
- Noise and ride quality Older leaf-spring and cab-over NVH can feel truck-like, especially empty or on highways.
- Camper conversions can be risky DIY wiring, leaks, and weight overload are common; value depends on build quality and docs.
- Import compliance complexity Titling, emissions, and insurance vary by state; budget time and paperwork for registration.
Who Should NOT Buy This
- Anyone who can't inspect rust on a lift
- Buyers needing modern crash safety
- People expecting quiet highway cruising
- Drivers who hate sitting over the front axle
- Those unwilling to baseline cooling system
- Owners without a diesel-capable mechanic nearby
- People who can't source JDM-only parts delays
- Anyone needing easy OBD diagnostics on older models
- Those who will overload it and skip maintenance
- Buyers in strict emissions states without research
- People who need fast acceleration or passing power
- Anyone who can't tolerate commercial-van NVH
- Families needing LATCH/ISOFIX and airbags everywhere
- People who park in tight garages (height/length)
- Owners who won't grease driveline regularly
- Anyone expecting car-like handling in crosswinds
- Buyers who can't handle 12-20 mpg depending setup
- People who need strong A/C in extreme heat (older)
- Those who won't pay for proper rust repair
- Anyone relying on unknown mileage imports blindly
Common Issues & Solutions
The HiAce is bulletproof when you look after it. The trouble shows up when you don't. On diesel HiAce vans the turbo is the part that punishes neglect, the cooling system is the part that punishes neglect on the 1KZ-TE, and the body paint is just thin enough that rust gets a head start before you notice. None of these are deal breakers if the paperwork shows the work was done.
| Issue | Cause | Solution | Est. Cost |
|---|---|---|---|
| Severe chassis rust | Salt use + poor undercoating + age | Walk away if perforated; proper cut/weld repairs | $2000-12000 |
| Step well rust-through | Trapped moisture under mats and seam sealer | Cut out, weld panels, treat cavities, reseal | $800-3000 |
| Sliding door roller wear | Dry track, rust, heavy use in commercial duty | Replace rollers, clean/grease track, align door | $250-1200 |
| Sliding door track rust | Water ingress + neglected cleaning | Derust/paint; replace track if pitted through | $300-2500 |
| Rear door hinge sag | Overloaded doors + worn hinges + rusted mounts | Replace hinges, repair metal, adjust latches | $300-1800 |
| Windshield frame leaks | Rust under seal and poor glass installs | Remove glass, repair rust, reseal properly | $600-2500 |
| Cooling system overheat | Old radiator, stuck thermostat, airlocks | Radiator/thermostat/cap; bleed; hoses | $400-1400 |
| Head gasket failure | Overheating + warped head (common on diesels) | Machine head, gasket set, bolts, cooling refresh | $1800-4500 |
| Cracked cylinder head | Repeated overheating or low coolant episodes | Replace head; pressure test; fix root cooling issue | $2500-6500 |
| Diesel injector wear | High km + poor fuel + overdue filter changes | Pop-test/replace injectors; set balance/timing | $800-2500 |
| Diesel pump leaks | Aged seals on mechanical injection pumps | Reseal/rebuild pump; replace fuel lines | $900-2500 |
| Hard cold starts (diesel) | Glow plugs/relay/timer faults or weak compression | Test glow circuit; replace plugs; compression test | $200-1800 |
| Turbo oil smoke | Worn turbo seals or restricted oil drain | Rebuild/replace turbo; clean drain; check PCV | $900-3000 |
| EGR/intake soot clog | Diesel EGR + short trips + low-quality oil | Remove/clean intake/EGR; address driving pattern | $300-1200 |
| Timing belt overdue | Unknown history on import/commercial vans | Do belt, tensioner, idlers, water pump ASAP | $700-1800 |
| Manual synchro wear | Commercial use + poor clutch habits + old oil | Fluid change may help; rebuild gearbox if grinding | $120-2500 |
| Clutch slip/shudder | Overloading + oil contamination + worn DMF (some) | Replace clutch kit; resurface flywheel; fix leaks | $700-2200 |
| Auto trans shift flare | Old ATF, worn solenoids, valve body wear | Service ATF; solenoids/valve body; rebuild if bad | $250-4500 |
| Driveshaft U-joint clunk | Neglected greasing + high load cycles | Replace U-joints/shaft; grease regularly | $250-1200 |
| Diff whine/leaks | Low oil from pinion/axle seals; heavy loads | Replace seals; refill; rebuild diff if noisy | $250-2500 |
| Front ball joint failure | Boot tears + water ingress + age | Replace joints ASAP; align; inspect control arms | $350-1200 |
| Steering wander | Worn idler/pitman/tie rods; alignment off | Replace worn links; alignment; check steering box | $300-1500 |
| Wheel bearing failure | Overloading + water ingress + old grease | Replace bearings/seals; inspect hubs/spindles | $300-1200 |
| Seized brake calipers | Corrosion on slide pins; infrequent fluid changes | Rebuild/replace calipers; new pads/rotors; flush | $400-1600 |
| Rusty brake lines | Salt exposure; line clips trap moisture | Replace hard lines; inspect flex hoses; bleed | $500-2500 |
| A/C weak or dead | Leaks at condenser/lines; worn compressor | Leak test, replace parts, evac/recharge | $300-1800 |
| Blower resistor failure | Heat stress; debris in blower | Replace resistor; clean blower and cabin intake | $80-350 |
| Cabin water intrusion | Door seals, roof gutters, rear windows, seams | Trace leaks; reseal; repair rust; replace seals | $200-3000 |
| Engine mount collapse | Age + diesel vibration + oil saturation | Replace mounts; check exhaust flex and brackets | $250-900 |
| Exhaust manifold crack | Heat cycling + missing studs + warped flange | Replace manifold; new studs/gaskets; check mounts | $400-1600 |
| Fuel filler neck rot | Road salt + trapped mud behind liner | Replace neck/hoses; clean area; undercoat | $250-900 |
| Electrical ground issues | Corrosion at chassis grounds; battery acid | Clean/replace grounds; dielectric grease; test drop | $50-400 |
| Odometer rollback risk | Import cluster swaps and weak documentation | Verify auction sheet/service stickers; inspect wear | $0-300 |
Differences between JDM & USDM
The HiAce was never officially sold in the United States — no LHD U.S.-spec version exists, and the chicken tax (a 25% tariff on imported light trucks dating to 1964) made commercial van imports uneconomical for Toyota. The U.K. and Australia did receive factory HiAce sales: the U.K. sold the H100 and H200 as the 'HiAce' through Toyota GB, and Australia has imported the HiAce continuously through the H300, where it's still sold new today. For U.S. buyers, the only legal path is the federal 25-year import rule (NHTSA's FMVSS exemption for vehicles 25+ years old): H100 vans built in 1999 became U.S.-legal in 2024, 2000-model-year vans in 2025, and 2001 in 2026. The H200 (2004 onward) won't begin clearing eligibility until 2029. JDM-spec HiAce vans differ from export-market HiAce sales in three significant ways: engine availability (the 1KZ-TE 3.0L turbo diesel and 5L NA diesel were largely export-market engines due to Japanese road tax penalties on engines over 2.0L; JDM domestic units leaned on the 2.0L 1RZ-E and 2.7L 3RZ-FE petrols), trim hierarchy (JDM-only Super Custom, Super Custom Limited, Touring HiAce, Regius Ace, and Grand HiAce trims have no direct export equivalent), and 4WD availability (4WD was offered in JDM but not all export markets). The Granvia and Grand HiAce share H100 mechanicals but use wider wagon bodies aimed at the luxury MPV segment.
Pre-Purchase Inspection Checklist
Walk this list with the seller, not in front of them. The Critical items mean walking away if there's no paperwork backing them up. The High items can usually be priced into the deal. Spend ten minutes at idle and 30 minutes driving the HiAce and you'll catch most of what matters.
Critical Priority
High Priority
Medium Priority
Generation History
H10/H20 (1st Gen) (1967-1977)
- Early cab-over commercial van
- Simple RWD running gear
- Collector niche; scarce in clean shape
- Rust and parts scarcity are main issues
H30/H40 (2nd Gen) (1977-1982)
- Refined cab-over packaging
- Workhorse reputation in Asia/Oceania
- Carb petrols; basic diesels in some mkts
- Survivors often heavily used
H50/H60/H70 (3rd Gen) (1982-1989)
- Broader body styles and wheelbases
- Improved comfort and payload
- Popular base for early camper conversions
- Rust and tired interiors common
H100 (4th Gen) (1989-2004)
- Iconic RWD/4WD; huge global following
- Common 1KZ-TE 3.0TD in JDM imports
- Strong camper/overland demand
- Watch for cooling, rust, and hard use
H200 (5th Gen) (2004-2019)
- More modern safety and refinement
- 2KD/1KD diesels in many markets
- Higher purchase cost; newer than 25-year
- Great fleet van; less 'classic' appeal
H300 (6th Gen) (2019-present)
- Latest platform; more tech and safety
- Not US-import eligible for decades
- Best as local-market purchase
- Values track commercial van market
Granvia/RegiusAce line (1995-2013 (varies))
- More MPV/luxury oriented variants
- Often better interiors than base HiAce
- Some share HiAce mechanicals
- Trim complexity affects parts sourcing
Market Data
JDM HiAce trims include the Super Custom, Super Custom Limited, Touring HiAce, Regius Ace, Grand HiAce, and the wide-body Granvia. Export markets mostly got the simpler DX and GL grades. The wagon-bodied Regius Ace, Grand HiAce, and Granvia share H100 mechanicals but use wider bodies aimed at the luxury MPV segment, so they drive softer and seat more.
Production Numbers & Rarity
| Generation | Years | Total Built | Notes |
|---|---|---|---|
| H10 (1st gen) | 1967-1977 | estimated | Global totals not centrally published |
| H20/H30/H40 (2nd gen) | 1977-1982 | estimated | Regional production data incomplete |
| H50/H60/H70 (3rd gen) | 1982-1989 | estimated | Multiple plants; consolidated totals unpublished |
| H100 (4th gen) | 1989-2004 | estimated | Very high volume; exact global figure unpublished |
| H200 (5th gen) | 2004-present | estimated | Ongoing production; totals vary by region |
| H300 (6th gen) | 2019-present | estimated | Ongoing production; market-specific volumes |
How It Compares
Among the JDM cab-over vans, the HiAce is the most reliable and the easiest to get parts for. The Nissan Caravan runs it close on most measures but trails on resale and aftermarket support. The Mazda Bongo is smaller and less robust, and the Mitsubishi Delica L400 is narrower with cult AWD status but harder to find clean.
| Feature | H200 | Nissan Caravan E24 | Mitsubishi Delica L400 |
|---|---|---|---|
| Core layout | Cab-over, RWD/4WD | Cab-over, RWD/4WD | Cab-over, RWD/4WD |
| Typical JDM engines | 1KZ-TE, 2KD, 3RZ | TD27, QD32, KA24 | 4M40 2.8TD, 6G72 V6 |
| 4WD desirability | High; overland premium | Medium; fewer cult buyers | Very high; cult status |
| Reliability reputation | Excellent overall | Good; varies by engine | Good; more complex |
| Rust vulnerability | High on older gens | High on older gens | High; watch seams/floors |
| Parts availability (US) | Good via import network | Fair; smaller ecosystem | Good; strong Delica scene |
| Highway comfort | Fair to good (gen/trim) | Fair; older feel | Good; MPV-like trims |
| Interior/camper space | Excellent; many configs | Very good; boxy cargo | Very good; tall roof options |
| Typical US import pricing | $12k-$45k (H100) | $8k-$25k (E24) | $15k-$45k (L400) |
| Fuel economy (diesel) | Mid-20s mpg possible | Low- to mid-20s mpg | Low-20s mpg typical |
| Driving position | Upright; bus-like | Upright; utilitarian | More MPV-like in trims |
| Best buyer use-case | Work + camper + overland | Budget cargo/people mover | Adventure MPV/camper |
| Auto transmission feel | Durable; can be sluggish | Varies; age-related wear | Smooth; more complexity |
Comparable Alternatives
If the HiAce isn't the right van, the obvious alternatives are the Mitsubishi Delica if you want narrower with factory AWD, the Nissan Caravan if you want the closest direct rival, or the Mazda Bongo if you want smaller. None of them have the parts support or the global reputation the HiAce has, but each one wins on a specific axis.
Mitsubishi Delica L400
Cult 4WD MPV; great camper base; similar import pricing
Nissan Caravan E24
Often cheaper; similar cab-over utility; simpler trims
Toyota TownAce/LiteAce
Smaller, cheaper Toyota van; easier city use; some 4WD
Mazda Bongo Friendee
Popular camper with pop-top; compact; strong community support
Toyota Granvia
More MPV comfort than base HiAce; often better interiors
In Pictures
The Buyer's Read
The safest H100 to buy is a documented Super Custom from the late 1990s with the 1KZ-TE 3.0L turbo diesel and a confirmed cooling system service record. That combination gives you the engine the overland market built its reputation on, parts support through the global Toyota network, and a body style with an established conversion community. Anything under $15,000 without receipts warrants scrutiny — a low price on a HiAce typically reflects a tired turbo, a compromised cooling system, or rust that has been painted rather than repaired.
On any 1KZ-TE, baseline the radiator, thermostat, hoses, water pump, and cap on day one. A $700 service prevents a $3,500 head job. The cooling system is the failure mode that converts a 300,000-mile-capable engine into a write-off.
Rust survey priority: step wells, rear arches, floor seams, and anywhere seam sealer has been disturbed. A HiAce from a coastal Japanese prefecture is rarely as clean as one from inland. Auction sheets and pre-export inspection reports are the most reliable way to confirm history for vehicles with no paper trail.
Avoid converted campers without documentation showing who did the work and when. DIY wiring, overweight builds, and poorly sealed roof penetrations are common problems that do not appear in listing photos. A factory panel van you convert yourself ends up cheaper and more predictable than an unknown conversion someone else walked away from.

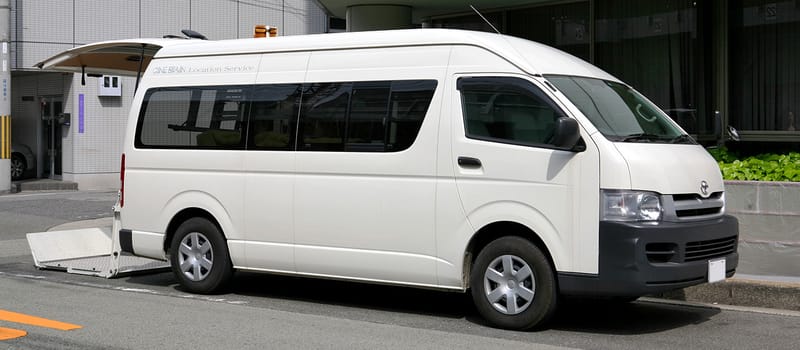

If your budget reaches the H200, note that U.S. import eligibility does not open until 2029 — the 1KD-FTV and 1GD-FTV diesels are capable and well-supported, but confirm your country's import age rule before committing to that generation.
Frequently Asked Questions
- What HiAce generation is best to buy for the money?
- Most buyers target H100 (1989-2004) for value, parts support, and 4WD diesel availability.
- What are the biggest problems to check before buying?
- Check rust, cooling system health, service records, and signs of hard fleet use or poor camper wiring.
- Is the 1KZ-TE diesel reliable?
- Yes if maintained, but overheating can cause head/gasket issues. Verify radiator, hoses, and temps.
- Are 4WD HiAce models worth the premium?
- Usually yes for snow/overland. 4WD + diesel is the top-value combo, but buy on condition first.
- How does HiAce compare to a Delica for camping?
- HiAce offers more van-like space and simplicity; Delica often has more MPV comfort and cult demand.
- What mileage is too high on an imported HiAce?
- Mileage matters less than maintenance and rust. 150k-250k mi can be fine with strong records.
- Do camper conversions increase value?
- Only if professionally built with documentation. DIY builds can reduce value due to leaks and wiring.
- When is a HiAce US-legal to import?
- Under the 25-year rule, eligibility depends on build year. Example: 1999 models are legal in 2024.
Sources & References
Sources (19)
- Toyota HiAce — encyclopedic overview — WikipediaVerified
- The common issues you will encounter on your Toyota HiAce van — Carused.jpVerified
- Most common problems — Toyota HiAce — Motor and WheelsVerified
- 1994 Toyota HiAce Super Custom — vanlife build profile — Vanlife NorthwestVerified
- Takata airbag recall — Co-op Toyota Australia — Co-op Toyota (Australia)Verified
- Toyota HiAce — current Australian model lineup — Toyota AustraliaVerified
- Toyota HiAce — current Japanese domestic lineup — Toyota JapanVerified
- Toyota KZ engine family (1KZ-TE 3.0L turbo diesel) — WikipediaVerified
- Toyota KD engine family (2KD-FTV / 1KD-FTV D-4D diesel) — WikipediaVerified
- Toyota GD engine family (1GD-FTV 2.8L D-4D diesel) — WikipediaVerified
- Toyota RZ engine family (1RZ-E / 2RZ-E / 3RZ-FE) — WikipediaVerified
- Toyota TR engine family (1TR-FE / 2TR-FE) — WikipediaVerified
- Toyota L engine family (3L / 5L NA diesel) — WikipediaVerified
- Toyota Granvia (H100-era wide-body luxury wagon) — WikipediaVerified
- Toyota Regius (Regius Ace JDM trim line) — WikipediaVerified
- Bring a Trailer — Toyota HiAce auction results — Bring a TrailerVerified
- Cars & Bids — HiAce search results — Cars & BidsVerified
- Importing a vehicle — 25-year exemption guidance — NHTSAVerified
- Flickr — HiAce lead-image source (nzhamstar) — FlickrVerified
Sources last verified:
