Chassis Code Explained
| Segment | Meaning | Detail |
|---|---|---|
| H | Make prefix | Honda |
| A | Model series | Acty kei truck/van series |
| 4 | Generation variant | HA4 — 656cc 4WD kei truck (March 1990 kei-regulation update) |
HA4 denotes the 4WD variant of the second-generation Acty truck under the post-1990 kei regulations; the 2WD counterpart used the HA3 code.
Editorial notes
Key Takeaways
The Acty ran four generations from 1977 until 2021, and the one you buy is mostly decided by the 25-year rule. The first gen with its 545cc twin is a museum piece. The HA3/HA4 second gen is what most people actually own in North America right now. The HA6/HA7 third gen just became legal in 2024, and the HA8/HA9 fourth gen still has years to wait.
- 4WD + 5MT commands the biggest premium
- Rust is the #1 value killer; inspect seams/frames
- Timing belt service history strongly affects pricing
- Vans often cost more than trucks for lifestyle use
- HA4/HH4 are peak value for simplicity and parts
- State legality varies; verify registration first
Technical Specifications
Every Acty is a 660cc kei truck or van, with the early 1977 cars running the 545cc EH twin that's the exception. The 656cc E07A three-cylinder is what you'll actually find under the bed of a usable import. Power runs from 38 horsepower up to 52 in the third generation, then back down to 44 on the fourth gen because of restricted kei output rules.
Engine Options
| Chassis | Engine | Displacement | Power — JDM | Notes |
|---|---|---|---|---|
| HA6/HA7/HH5/HH6 | E07Z | 0.656L | 46hp @ 5500rpm (estimated) | 3-cyl SOHC 12V, EFI (est.) |
Transmission Options
| Type | Ratios | Availability | Notes |
|---|---|---|---|
| 5-speed Manual | 3.545/2.047/1.392/1.029/0.825 (estimated) | Most trims, all gens (market-dependent) | RWD/4WD; final drive varies |
| 4-speed Manual | 3.272/1.894/1.280/0.914 (estimated) | Early gens (TA/TC, HA1/HA2) | Base models; ratios vary by year |
| 3-speed Automatic | 2.722/1.504/1.000 (estimated) | Selected HA6/HA7/HA8/HA9 trims | Torque converter; kei-duty calibration |
| 5-speed Manual + UL (Attack) | 3.545/2.047/1.392/1.029/0.825 + UL (est.) | Attack trims (4WD) | Ultra-low crawler gear; final varies |
Livability
- Headroom
- 38.0"
- Upright seating; tall drivers fit but narrow cab
- Rear Seats
- None
- Truck has no rear seats; Acty Van has rear bench
- Cargo
- Bed ~6.5 ft x 4.5 ft
- Great footprint; payload limited; slow on highways
Variants & Trims
The Acty came as a truck and as a van, and you should pick one before you pick a year. The HA series trucks are the working kei pickup most US buyers want. The HH series vans give you weatherproof cargo and convert into micro-campers, and they cost more for the same year. The Attack trim is the 4WD truck with the ultra-low crawler gear, and the SDX is the higher equipment grade. If you want the configuration the import market fights over, that's an HA4 Attack with a 5-speed.
| Generation | Trim | Engine | Key Features |
|---|---|---|---|
| 3rd gen (HA6/HA7/HH5/HH6, 1999-2009) | Acty Truck STD | E07Z I3 656cc NA | Basic trim, 2WD, 5MT/3AT availability |
| 3rd gen (HA6/HA7/HH5/HH6, 1999-2009) | Acty Truck SDX | E07Z I3 656cc NA | Upgraded interior, better seats, convenience trim |
| 3rd gen (HA6/HA7/HH5/HH6, 1999-2009) | Acty Truck Town | E07Z I3 656cc NA | Top trim, chrome accents, upgraded cabin |
| 3rd gen (HA6/HA7/HH5/HH6, 1999-2009) | Acty Truck Attack | E07Z I3 656cc NA | Ultra-low gear, diff lock (where equipped), 4WD |
| 3rd gen (HA6/HA7/HH5/HH6, 1999-2009) | Acty Truck 4WD | E07Z I3 656cc NA | Selectable 4WD, optional low range |
| 3rd gen (HA6/HA7/HH5/HH6, 1999-2009) | Acty Van PRO-A | E07Z I3 656cc NA | Commercial spec, cargo trim, durable interior |
| 3rd gen (HA6/HA7/HH5/HH6, 1999-2009) | Acty Van PRO-B | E07Z I3 656cc NA | Commercial spec, upgraded equipment vs PRO-A |
| 3rd gen (HA6/HA7/HH5/HH6, 1999-2009) | Acty Van SDX | E07Z I3 656cc NA | Better trim, passenger-focused, improved seats |
| 3rd gen (HA6/HA7/HH5/HH6, 1999-2009) | Acty Van Town | E07Z I3 656cc NA | Top trim, power options (market-dependent) |
Should You Buy a Honda Acty HA7?
The Acty is a working truck, not a comfortable one, and the trade-off list reflects that. You get unmatched utility per square foot of road, and you give up highway speed, crash safety, and a quiet cabin. Buyers who walk in knowing that stay happy. Buyers who expect a tiny pickup truck do not.
Why You'll Love It
- Excellent utility per footprint Tiny exterior, flatbed/cargo efficiency; ideal for farms, shops, and tight streets.
- Strong reliability reputation Honda kei drivetrains are durable; simple systems on HA3/HA4 are easy to keep running.
- 4WD capability in kei size 4WD models handle snow, gravel, and fields well; great with proper tires and maintenance.
- Great parts availability (relative) Compared with rarer kei models, Acty parts support is strong via Japan and importers.
- High buyer demand and liquidity Acty is a top-searched kei; clean examples sell quickly, supporting resale values.
- Simple DIY serviceability Basic layout, plentiful guides; common jobs are approachable for owners and small shops.
- Van variants suit lifestyle builds HH vans are popular for micro-camping; more weatherproof and secure than a truck bed.
Why You Might Not
- Rust is common and expensive Rocker seams, floors, bed corners, and frames rust; repairs can exceed vehicle value.
- Slow by modern standards Kei power and gearing mean limited highway performance; best for local roads and work use.
- Safety and crash protection Minimal crash structure and airbags on older gens; not comparable to modern small cars.
- State registration uncertainty Some US states restrict kei vehicles; verify title/registration path before purchase.
- Hard commercial life is common Many were fleet tools; expect worn synchros, tired suspension, and neglected maintenance.
- Cab comfort is limited Upright seating, noise, and heat; long trips can be fatiguing, especially in trucks.
- Parts vary by chassis code HA/HH and year splits matter; ordering wrong parts is common without exact VIN/chassis.
Who Should NOT Buy This
- Anyone needing 70+ mph highway commuting
- Drivers expecting modern crash safety/airbags
- People who won't do frequent maintenance
- Buyers without a kei-friendly local mechanic
- Rust-belt buyers without indoor storage
- Anyone needing strong A/C in hot climates
- People who haul heavy loads daily (overload risk)
- Those needing quiet, refined cabin comfort
- Drivers over 6'3" or broad-shouldered
- Anyone needing automatic transmission (rare)
- California residents if registration is uncertain
- Buyers who need easy parts at local stores
- People who can't tolerate slow acceleration
- Those who won't replace old fuel hoses immediately
- Anyone expecting modern infotainment/electronics
- Families needing rear seats (truck) or LATCH
- People who park outside in heavy rain/snow
- Owners who won't address structural rust promptly
- Those needing towing capability (not suitable)
- Anyone who dislikes right-hand drive adaptation
Common Issues & Solutions
Most of what goes wrong on the Acty is age, not Honda. The timing belt is the one job you assume is overdue no matter what the seller tells you. The radiator overflow tank sits under the bed in the debris path and gets destroyed routinely. The OEM ECU capacitors swell and leak on older cars, and that single fault looks like a dozen other problems until the board gets re-capped. Rust is the real money pit, especially on the rockers, the bed corners, and the frame.
| Issue | Cause | Solution | Est. Cost |
|---|---|---|---|
| Timing belt overdue | Unknown history; age cracks belt teeth | Replace belt, tensioner, seals; set timing | $500-1200 |
| Water pump failure | Old pump bearing/seal; coolant neglect | Replace pump with belt service; flush coolant | $250-700 |
| Overheating in traffic | Fan switch, relay, or clogged radiator | Test fan circuit; replace switch/rad; bleed | $150-800 |
| Head gasket / warped head | Repeated overheating; low coolant events | Machine head, gasket set, thermostat, flush | $900-2200 |
| Carb idle hunt/stall | Vacuum leaks, dirty jets, bad choke pull-off | Smoke test; rebuild carb; replace vacuum hoses | $250-900 |
| Hard hot starts | Heat soak, weak fuel pump, percolation | Replace pump/insulate lines; set float level | $150-600 |
| Fuel hose cracking/leaks | Aged rubber; ethanol fuel accelerates rot | Replace all rubber lines with ethanol-safe hose | $120-450 |
| Rusty fuel tank debris | Condensation; long storage; poor fuel | Clean/coat or replace tank; new filter/pump | $300-1200 |
| Valve cover oil leak | Hardened gasket; over-tightened cover | Replace gasket/grommets; check PCV/breather | $80-250 |
| Distributor O-ring leak | Aged O-ring; heat cycles | Replace O-ring; clean oil; verify timing | $80-250 |
| Rear main seal leak | Age; crankcase pressure from clogged breather | Replace seal with clutch job; service breather | $700-1500 |
| Oil consumption/smoke | Worn rings or valve stem seals from age | Leakdown test; head refresh or full rebuild | $900-3000 |
| 2nd gear synchro grind | Worn synchro; old gear oil; hard shifting | Change fluid; if persists rebuild/replace trans | $150-1800 |
| Clutch slip or chatter | Worn disc; oil contamination; weak pressure plate | Clutch kit; resurface flywheel; fix oil leak | $600-1400 |
| Clutch cable fray/bind | Dry cable; rust at sheath ends | Replace cable; lube pedal pivot; set freeplay | $120-350 |
| CV axle clicking | Split boots lose grease; joint wears quickly | Replace axle or reboot early; align afterward | $200-700 |
| Wheel bearing growl | Water intrusion; overload; age | Replace bearing(s); inspect hub and seals | $250-900 |
| Steering wander/play | Tie rods, idler arm, steering box wear | Replace worn joints; align; check box adjustment | $250-1000 |
| Ball joint failure risk | Boot torn; grease loss; corrosion | Replace ball joints ASAP; do both sides | $300-900 |
| Rear leaf spring sag | Chronic overloading; bushing wear | Replace leaf packs/bushings; avoid overload | $400-1200 |
| Brake hard line rust | Road salt; trapped mud; old coating | Replace lines; flush fluid; inspect hoses | $400-1500 |
| Front caliper seizure | Corroded slide pins; torn boots | Rebuild/replace calipers; new pads/rotors | $250-900 |
| Rear drum weak/pulsation | Out-of-round drums; leaking wheel cylinders | Turn/replace drums; replace cylinders/shoes | $250-800 |
| Parking brake seized | Cable rust; infrequent use | Replace cables; service rear hardware | $200-650 |
| Alternator weak/no charge | Worn brushes/regulator; heat and age | Rebuild/replace alternator; clean grounds | $200-600 |
| Intermittent no-start | Corroded grounds; tired starter; bad ignition switch | Voltage drop test; renew grounds; starter service | $150-700 |
| Heater core low output | Clogged core; air pockets; stuck thermostat | Backflush core; replace thermostat; bleed system | $120-600 |
| Cab water leaks | Door seals, windshield seal, cowl drains clogged | Clear drains; reseal windshield; replace seals | $100-900 |
| Severe structural rust | Salt exposure; poor repairs; trapped moisture | Walk away; proper metal work exceeds value | $1500-8000 |
| 4WD won't engage | Actuator/vac lines/switch issues; neglected use | Diagnose actuator; replace lines/switch; service | $200-1200 |
| 4WD driveline vibration | Worn U-joint/center bearing; bent shaft | Replace U-joint/shaft; check mounts and angles | $300-1500 |
| Speedo bounce/noise | Dry or kinked cable; worn cluster gear | Replace/lube cable; service cluster if needed | $80-350 |
| Lighting intermittents | Corroded sockets/grounds; hacked wiring | Clean grounds; replace sockets; repair harness | $80-600 |
Differences between JDM & USDM
The Honda Acty was never officially sold in the United States. Every Acty in North America is either a US-25-year-rule import (NHTSA exempt at 25 years from build date) or a low-speed off-road / farm vehicle registered under state-specific kei or UTV provisions where allowed. Eligibility by build year under the 25-year rule: 1988 became legal in 2013, 1990 (start of the HA3/HA4 656cc generation) in 2015, 1999 (start of the HA6/HA7/HH5/HH6 third generation) in 2024, and 2009 (start of the HA8/HA9 fourth generation truck) in 2034. State acceptance varies independently of the federal exemption — some states accept kei trucks for full road registration, others restrict them to off-highway use, and a few revoked existing registrations after policy changes. The WP guide flags this explicitly: confirm title type, insurance acceptance, and DMV policy at the county level before purchase. The right-hand-drive layout is universal across the entire Acty production run; there is no LHD configuration.
Pre-Purchase Inspection Checklist
Run this list with the truck on a lift if you can, and bring a magnet. The Critical items are deal breakers if there's no paperwork. The High items can be priced into the deal. Most of the Acty drama is rust and the overflow tank, so spend your time underneath rather than under the hood.
Critical Priority
High Priority
Medium Priority
Low Priority
Generation History

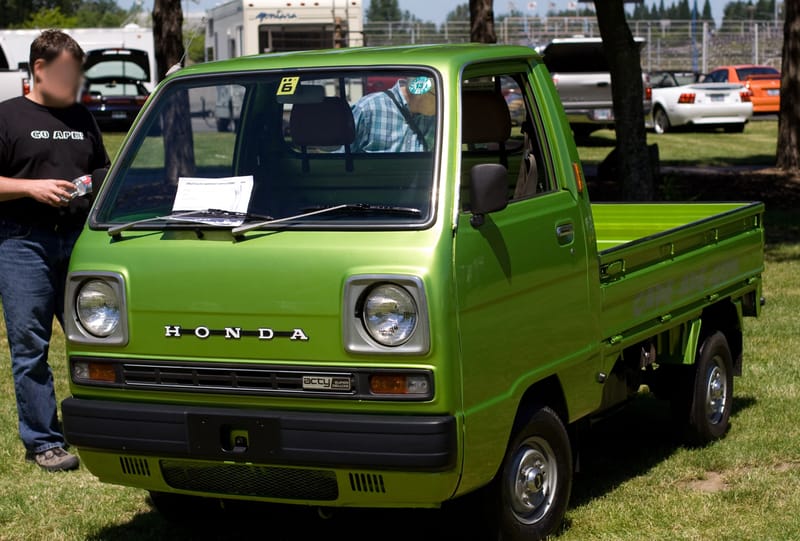

Acty 1st Gen (TA/TC) (1977-1988)
- Mid-engine kei truck origins
- Simple carbureted 2-cyl early models
- Utility-focused, very basic interiors
- Rarer in export markets; parts vary by year
Acty 2nd Gen (HA1-HA2) (1988-1999)
- E07A 656cc; carb then EFI in later years
- 4WD availability; work-spec durability
- Truck: HA1/HA2; Van: HH1/HH2
- Best balance of simplicity and usability
Acty 3rd Gen (HA3-HA4) (1990-1999)
- Popular US import: HA4 4WD 5MT sweet spot
- E07A SOHC; easy service and strong parts
- Diff lock on select trims/years (market dependent)
- Huge aftermarket for lift/tires and accessories
Acty Van (HH3-HH4) (1990-1999)
- More comfort and cargo volume than truck
- Often higher demand for camping builds
- 4WD and 5MT available; trim varies widely
- Watch for hard commercial use and rust

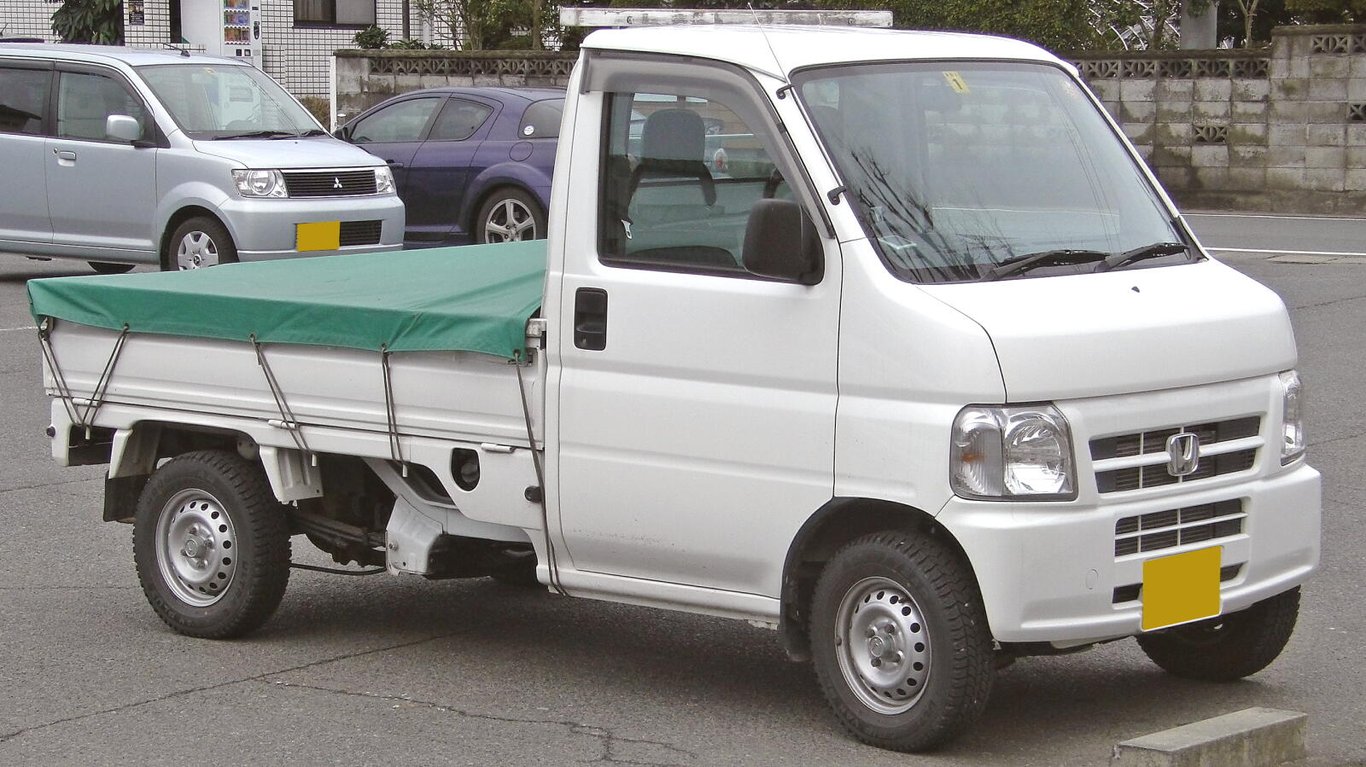

Acty 4th Gen (HA6-HA7) (1999-2009)
- Newer chassis; improved safety/ergonomics
- E07Z 656cc; EFI; better drivability
- 4WD available; more refined than HA4
- US-legal starting 2024 for 1999 builds

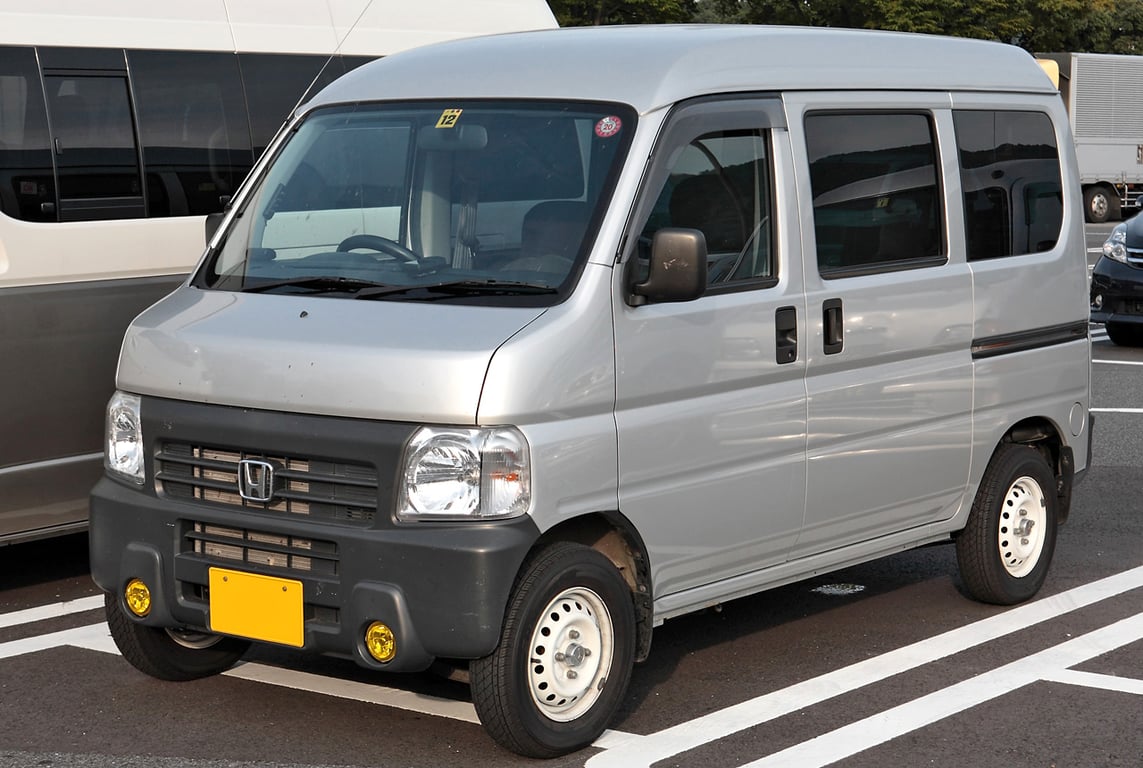

Acty Van (HH5-HH6) (1999-2018)
- Most refined Acty van generation
- Better NVH and interior packaging
- Strong lifestyle demand where legal
- Later years not US-legal yet (25-year rule)
Sales Numbers by Year
| Year | Notes |
|---|---|
| 1977 | Acty launches July 1977 with 545cc EH two-cylinder, 28 hp, RWD only |
| 1983 | Mid-cycle update; revised output figures and trim changes within first generation |
| 1988 | Second-generation HA1/HA2 truck and HH1/HH2 van launch with 547cc E05A three-cylinder, 34 hp |
| 1990 | 656cc engine introduced; RWD top speed 71 mph (115 km/h), 4WD 65 mph (105 km/h); HA3/HA4/HA5 codes appear |
| 1999 | Third generation HA6/HA7 truck and HH5/HH6 van launch; revised hood profile for new kei safety regulations; 52 hp from updated 656cc three-cylinder |
| 2009 | Fourth generation HA8/HA9 launches December 2009; truck only (van discontinued); output restricted to 44 hp; overall length shortened |
| 2018 | 55th-anniversary special edition based on the Town trim |
| 2021 | Acty production ends; Honda cites kei regulation costs as unprofitable for a re-engineered successor |
Market Data
The Acty came as a truck and as a van, and you should pick one before you pick a year. The HA series trucks are the working kei pickup most US buyers want. The HH series vans give you weatherproof cargo and convert into micro-campers, and they cost more for the same year. The Attack trim is the 4WD truck with the ultra-low crawler gear, and the SDX is the higher equipment grade. If you want the configuration the import market fights over, that's an HA4 Attack with a 5-speed.
Production Numbers & Rarity
| Generation | Years | Total Built | Notes |
|---|---|---|---|
| 1st gen (TA/TC) | 1977-1988 | unknown (estimated ~500,000+) | Exact factory totals not publicly consolidated |
| 2nd gen (HA1/HA2/HH1/HH2) | 1988-1999 | unknown (estimated ~800,000+) | High-volume kei workhorse; totals vary by source |
| 3rd gen (HA6/HA7/HH5/HH6) | 1999-2009 | unknown (estimated ~700,000+) | Truck+van combined; split production not published |
| 4th gen (HA8/HA9 Truck; HH5/HH6 Van) | 2009-2021 (Truck), 2009-2018 (Van) | unknown (estimated ~400,000+) | Late-cycle; van ended earlier than truck |
Rarest variant: Acty Truck Attack (5MT UL)
How It Compares
Inside the kei truck pack, the Acty's edge is the mid-engine layout and the parts support. The Suzuki Carry sells more units globally and is easier to find in some markets. The Daihatsu Hijet runs longer in the US gray import scene because more years are already legal. The Subaru Sambar is the rarest of the four and the priciest when clean.
| Feature | HA7 | Suzuki Carry DA63 | Subaru Sambar KS4 |
|---|---|---|---|
| Engine layout | Mid/rear-engine (varies gen) | Front-engine | Rear/mid-engine |
| Displacement | 656cc kei | 658cc kei | 658cc kei |
| Power (typical NA) | ~38-46 hp (gen/trim) | ~38-48 hp | ~40-48 hp |
| Transmission options | 5MT/3AT (varies) | 5MT/3AT | 5MT/3AT |
| 4WD availability | Yes; common on HA4/HH4 | Yes; very common | Yes; strong reputation |
| Diff lock availability | Select trims/years | Select trims/years | Less common; varies |
| Ride/handling | Stable; car-like feel for kei | More truck-like | Smooth for kei; rear engine |
| Cab space | Tight; upright seating | Similar; slightly roomier varies | Often roomiest feel |
| Parts support (US import) | Strong; high import volume | Strong; very common | Good but model-specific |
| Rust resistance | Average; inspect seams/bed | Average; bed/floor rust common | Average; sills and floors |
| Van lifestyle demand | High (HH vans) | High (Every vans) | High (Hijet Cargo) |
| Best use case | Work + hobby; balanced | Workhorse; huge supply | Refined feel; enthusiast pick |
| Typical US price (clean) | $7k-$14k (HA4/HH4) | $6k-$13k | $8k-$16k |
Comparable Alternatives
If the Acty doesn't work for you, the obvious alternatives are the Suzuki Carry or the Daihatsu Hijet, which are the same idea built by different companies. The Subaru Sambar is the other mid-engine kei truck and the closest match in driving feel. If you want a van instead of a truck, the Mitsubishi Minicab is worth a look.
Suzuki Carry
Most common kei rival; broad parts and 4WD supply
Subaru Sambar
Roomy feel; rear-engine character; strong enthusiast demand
Daihatsu Hijet
Huge Japan supply; many 4WD trims; good work spec value
Mitsubishi Minicab
Often cheaper; simple mechanicals; good farm/utility choice
In Pictures
The Buyer's Read
For most buyers, the HA4 4WD with a 5-speed manual is the right starting point: documented timing belt service, an underbody clean enough to read the frame-rail stampings, and no 4WD engagement faults. That combination handles snow and gravel without the electronic complexity of later generations, and holds value better than anything else in the lineup. Plan on $8,000 to $12,000 landed for a good one.
If you want a van, the HH3 or HH4 is the sweet spot for the same reasons the HA4 is on the truck side. The HH5 and HH6 are newer and better, but the legal ones are 1999 and 2000 builds, and prices reflect that. Vans run roughly 30 to 50 percent more than the equivalent truck — camping demand has kept that gap steady.
The trap to avoid is an Acty without records. A $4,500 import looks like a deal until you've replaced the timing belt, re-capped the ECU, built a guard for the overflow tank, and patched the rocker hidden under fresh undercoating. That's another $2,000 to $3,000 of baseline work, which is fine if the project is the point — not if you want to drive it.
On registration: the 25-year rule makes the Acty federally importable, but state and county policy governs road use. Some states accept kei trucks for full registration; others limit them to off-highway only. A few have revoked existing registrations after policy changes, so confirm the path with your DMV before the truck ships.
Frequently Asked Questions
- What Honda Acty is best to buy?
- Most buyers target HA4/HH4 4WD 5MT with low rust and proof of timing belt service.
- How much does a Honda Acty cost in the US?
- Driver-grade imports often run $6k-$10k; clean 4WD 5MT examples commonly $10k-$16k.
- Is the Honda Acty street legal in my state?
- It depends. Some states restrict kei trucks; confirm title type, insurance, and DMV policy first.
- Can a Honda Acty drive on the highway?
- It can, but it’s not ideal. Expect limited top speed, high RPM, and crosswind sensitivity.
- What are the biggest problems to check?
- Prioritize rust, cooling system, worn synchros/clutch, and overdue timing belt maintenance.
- Truck vs van: which holds value better?
- Vans often bring higher lifestyle premiums; trucks are steadier work buys. Condition drives value most.
- Is 4WD worth it on an Acty?
- Yes for snow/gravel. 4WD adds resale value and capability; verify engagement and listen for drivetrain noise.
- What year is US-legal under the 25-year rule?
- A given model year becomes eligible after 25 years. For example, 1999 becomes legal in 2024.
Sources & References
Sources (10)
- Honda Acty — Wikipedia — WikipediaVerified
- Honda Acty (ホンダ・アクティ) — Japanese Wikipedia — Wikipedia (Japanese)Verified
- Kei truck — Wikipedia — WikipediaVerified
- 4x4 Honda Acty Mini Truck buying notes — Substar Inc.Verified
- Honda Acty Truck specifications (Japan-market reference) — TCV (Trade Carview)Verified
- 1992 Honda Acty — problems and owner advice thread — MiniTruckTalkVerified
- Honda Acty — basic questions community thread — MiniTruckTalkVerified
- Honda Acty Buyers Guide — KPMI USAVerified
- US NHTSA 25-year import exemption guidance — NHTSAVerified
- EPA importing vehicles and engines guidance — EPAVerified
Sources last verified:
